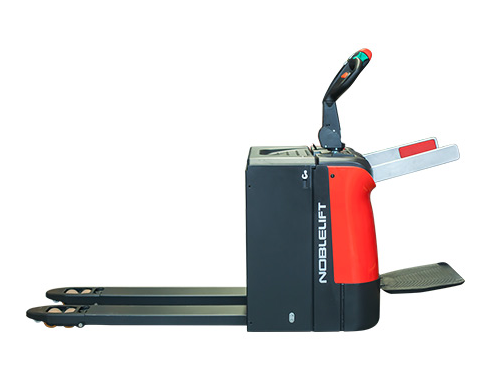

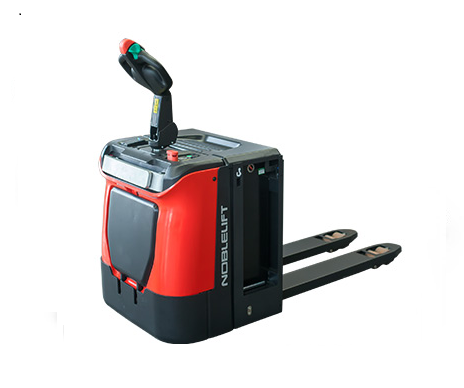

GIỚI THIỆU CHI TIẾT VỀ XE NÂNG ĐIỆN THẤP NOBLELIFT PT25N ĐƯỢC PHÂN PHỐI BỚI SIÊU THỊ XE NÂNG:
CÔNG TY TNHH PATIHA VIỆT NAM
Tại Đà Nẵng: 296 Trường Sơn, Hòa Nhơn, Hòa Vang, Đà Nẵng
Tại TPHCM: 105/2 Quốc Lộ 1A, P. Tân Thới Hiệp, Q12, TPHCM, VN.
Tại Bình Dương : SIÊU THỊ XE NÂNG - 41/3 Quốc Lộ 13,P. Thuận Giao,
TX Thuận An, Bình Dương
Điện Thoại:0938.164.386 Hoặc (0274) 399 1089 / 90
Fax: 0938.164.386
Chăm sóc khách hàng 0938.164.386
Website: patiha.com.vn http://noblelift.com.vn/ http://www.noblelift.com/
Type sheet for industrial truck acc. to VDI 2198 |
|
|||||
Distinguishing mark |
1.2 |
Manufacturer`s type designation |
|
PT 20N |
PT 25N |
|
1.3 |
Power(battery,diesel,petrol gas,manual) |
|
Battery |
|||
1.4 |
Operator type |
|
Pedestrian/Stand |
|
||
1.5 |
Load Capacity / rated load |
Q (t) |
2 |
2.5 |
|
|
1.6 |
Load centre distance |
c (mm) |
600 |
600 |
|
|
1.8 |
Load distance, centre of drive axle to fork |
x(mm) |
892 1) |
892 1) |
|
|
1.9 |
Wheelbase |
y (mm) |
1330 1) 2)4) |
1435 1) |
|
|
Weight |
2.1 |
Service weight |
kg |
650 |
820 |
|
2.2 |
Axle loading, laden front/rear |
kg |
1110/1540 |
1370/1950 |
|
|
2.3 |
Axle loading, unladen front/ rear |
kg |
510/140 |
600/200 |
|
|
Tires, chassis |
3.1 |
Tires |
|
Polyurethane (PU) |
|
|
3.2 |
Tire size, front |
Æ x w (mm) |
210X70 |
|
||
3.3 |
Tire size, rear |
Æ x w (mm) |
84X84 |
|
||
3.4 |
Additional wheels (dimensions) |
Æ x w (mm) |
100x40 |
|
||
3.5 |
Wheels, number front/ rear(x=driven wheels) |
|
1×+2/4 |
|
||
3.6 |
Tread, front |
b10 (mm) |
560 |
|
||
3.7 |
Tread, rear |
b11 (mm) |
367/512 |
|
||
Dimensions |
4.4 |
Lift height |
h3 (mm) |
120 |
|
|
4.9 |
Height of tiller in drive position min. / max. |
h14 (mm) |
9501350 |
|
||
4.15 |
Height, lowered |
h13 (mm) |
85 |
|
||
4.19 |
Overall length |
l1 (mm) |
1790 2) 3) |
1895 |
|
|
4.2 |
Length to face of forks |
l2 (mm) |
640 2) 3)4) |
745 3) |
|
|
4.21 |
Overall width |
b1 (mm) |
790 |
|
||
4.22 |
Fork dimensions |
s/e/l (mm) |
55/173/1150 |
|
||
4.25 |
Distance between fork-arms |
b5 (mm) |
540/685 |
|
||
4.32 |
Ground clearance, centre of wheelbase |
m2 (mm) |
30 |
|
||
4.33 |
Aisle width for pallets 1000 x 1200 crossways |
Ast(mm) |
2400 2) 3)4) |
2505 3) |
|
|
4.34 |
Aisle width for pallets 1000X1200 lengthways |
Ast(mm) |
2290 2) 3)4) |
2395 3) |
|
|
4.35 |
Turning radius |
Wa (mm) |
1585 2)3)4) |
1690 3) |
|
|
Performance |
5.1 |
Travel speed, laden/ unladen |
km/h |
7.5/8.0 |
6.0/7.0 |
|
5.2 |
Lift speed, laden/ unladen |
m/s |
0.025/0.030 |
0.035/0.045 |
|
|
5.3 |
Lowering speed, laden / unladen |
m/s |
0.030/0.025 |
0.045/0.050 |
|
|
5.8 |
Gradeability, laden/ unladen |
% |
8/15 |
|||
5.1 |
Service brake |
|
Electromagnetic |
|
||
Motors |
6.1 |
Drive motor rating S2 60min |
kW |
1.4 |
|
|
6.2 |
Lift motor rating at S3 10% |
kW |
0.8 |
2.2 |
|
|
6.3 |
Battery acc. to DIN 43531 /35 / 36 A, B, C, no |
|
/ |
/ |
|
|
6.4 |
Battery voltage, nominal capacity K5 |
V/Ah |
24/210 2PzS |
24/350 3PzS |
|
|
6.5 |
Battery weight (minimum) |
kg |
185 |
285 |
|
|
6.6 |
Energy consumption acc. to VDI cycle |
KWh/h |
0.36 |
NOT MEASURED YET |
|
|
|
8.1 |
Type of drive control |
|
AC -Speed Control |
|
|
8.4 |
Sound level at driver`s ear acc. to EN 12053 |
dB(A) |
69 |
|
||
1.2 |
Manufacturer`s type designation |
|
|
|
|
|
1)Load section lowered: +65 mm;2)With side battery removal: + 30 mm;3)With unfolded platform: + 440 mm |
|
|||||
4) With 3VBS battery: y = XXX mm; l2 = XXX mm; Ast = - XX mm; Wa = - XX mm |
|
