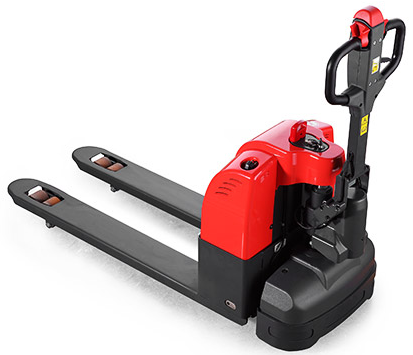

GIỚI THIỆU CHI TIẾT VỀ XE NÂNG ĐIỆN THẤP 1500KG EPT15 - SIÊU THỊ XE NÂNG
CÔNG TY TNHH PATIHA VIỆT NAM
Tại Đà Nẵng: 296 Trường Sơn, Hòa Nhơn, Hòa Vang, Đà Nẵng
Tại TPHCM: 105/2 Quốc Lộ 1A, P. Tân Thới Hiệp, Q12, TPHCM, VN.
Tại Bình Dương : SIÊU THỊ XE NÂNG - 41/3 Quốc Lộ 13,P. Thuận Giao,
TX Thuận An, Bình Dương
Điện Thoại: 0938.164.386 Hoặc (0274) 399 1089 / 90
Fax: 0938.164.386
Chăm sóc khách hàng 0906 745 968
Website: patiha.com.vn http://noblelift.com.vn/ http://www.noblelift.com/
Type sheet for industrial truck acc. to VDI 2198 |
|||||||
Distinguishing mark |
1.2 |
Manufacturer`s type designation |
|
|
PTE15 |
||
1.3 |
Drive |
|
|
electric |
|||
1.4 |
Operator type |
|
|
pedestrian |
|||
1.5 |
Load Capacity / rated load |
Q (t) |
lbs |
1.5 |
1.5 |
3300 |
|
1.6 |
Load centre distance |
c (mm) |
in |
600 |
600 |
23.6 |
|
1.8 |
Load distance ,centre of drive axle to fork |
x (mm) |
in |
946 |
946 |
37.2 |
|
1.9 |
Wheelbase |
y (mm) |
in |
1293 |
1363 |
53.9 |
|
Weight |
2.1 |
Service weight |
kg |
lbs |
190 |
200 |
440 |
2.2 |
Axle loading, laden front/rear |
kg |
lbs |
510/1180 |
560/1140 |
1232/2508 |
|
2.3 |
Axle loading, unladen front/rear |
kg |
lbs |
150/40 |
160/40 |
352/88 |
|
Tyres, chassis |
3.1 |
Tires |
|
|
Polyurethane (PU) |
||
3.2 |
Tire size,front |
Æ x w (mm) |
in |
Æ 220×70 |
Æ 220×70 |
Æ 8.7×2.8 |
|
3.3 |
Tire size,rear |
Æ x w (mm) |
in |
Æ 80×70 |
Æ 80×93 |
Æ 3.1×3.7 |
|
3.4 |
Additional wheels(dimensions) |
Æ x w (mm) |
in |
Æ80×30 |
Æ80×30 |
Æ3.1×1.2 |
|
3.5 |
Wheels,number front/rear(x=driven wheels) |
|
|
1x +2/ 4 |
1x +2/ 2 |
||
3.6 |
Tread, front |
b10 (mm) |
in |
410 |
410 |
16.1 |
|
3.7 |
Tread, rear |
b11 (mm) |
in |
380 |
380 |
15 |
|
Dimensions |
4.4 |
Lift |
h3 (mm) |
in |
115 |
115 |
4.5 |
4.9 |
Height of tiller in drive position min./ max. |
h14 (mm) |
in |
820 / 1310 |
820 / 1310 |
32.3/51.6 |
|
4.15 |
Height, lowered |
h13 (mm) |
in |
85 (80) |
80 |
3.1 |
|
4.19 |
Overall length |
l1 (mm) |
in |
1690 |
1760 |
69.3 |
|
4.20 |
Length to face of forks |
l2 (mm) |
in |
540 |
540 |
21.3 |
|
4.21 |
Overall width |
b1 (mm) |
in |
574 |
705 |
27.8 |
|
4.22 |
Fork dimensions |
s/e/l (mm) |
in |
48/60/ |
48/60/ |
1.9/2.4 |
|
4.25 |
Distance between fork- arms |
b5 (mm) |
in |
540 (520) |
685 (520, 540) |
27(20.5,21.3) |
|
4.32 |
Ground clearance, centre of wheelbase |
m2 (mm) |
in |
37(32) |
32 |
1.3 |
|
4.34 |
Aisle width for pallets 800X1200 lengthways |
Ast (mm) |
in |
2160 |
2230 |
87.8 |
|
4.35 |
Turning radius |
Wa (mm) |
in |
1485 |
1555 |
61.2 |
|
Performance data |
5.1 |
Travel speed, laden/ unladen |
km/h |
mph |
4.2 / 4.6 |
4.2 / 4.6 |
2.6/2.9 |
5.2 |
Lift speed, laden/ unladen |
m/s |
fpm |
0.03 / 0.053 |
0.03 / 0.053 |
5.9/10.4 |
|
5.3 |
Lowering speed, laden/ unladen |
m/s |
fpm |
- |
- |
- |
|
5.8 |
Max. gradeability, laden/ unladen |
% |
|
4 / 10 |
|||
5.10 |
Service brake |
|
|
electromagnetic |
|||
Electric- engine |
6.1 |
Drive motor rating S2 60min |
kW |
HP |
0.45 |
0.45 |
0.6 |
6.2 |
Lift motor rating at S3 10% |
kW |
HP |
0.8 |
0.8 |
1.1 |
|
6.3 |
Battery acc. to DIN 43531/ 35/ 36 A, B, C, no |
|
|
no |
|||
6.4 |
Battery voltage, nominal capacity K5 |
V/ Ah |
|
2×12V / 64 |
|||
6.5 |
Battery weight |
kg |
lbs |
40 |
40 |
88 |
|
6.6 |
Energy consumption acc. to VDI cycle |
kWh/h |
|
0,39 |
|||
Addition data |
8.1 |
Type of drive control |
|
|
DC speed Control |
||
8.4 |
Sound level at driver`s ear acc. to EN 12053 |
dB(A) |
|
69 |
